Model: JS3.5D, JH3.5D, BR33, COP32
Matched Bit shank: DHD3.5, BR33, COP32
Hole Range: 90-110mm
Application: Quarry blasting hole drilling, micrpiling drilling

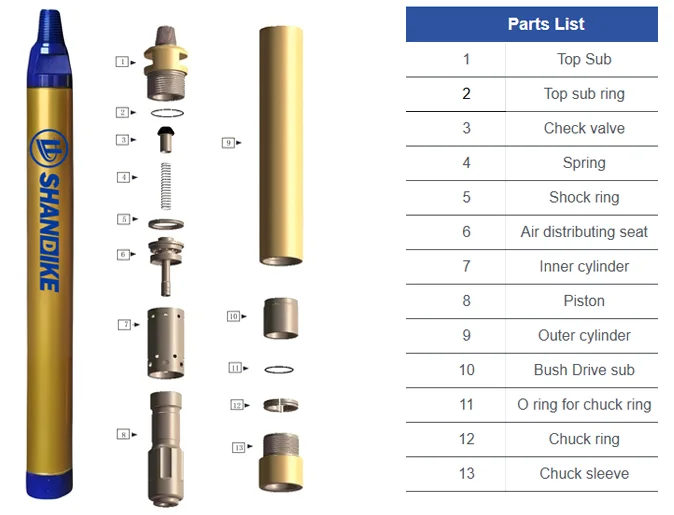

SHENDIKE 3.5INCH DTH HAMMER
SHENDIKE offers a wide range and versatile of high pressure DTH hammers from 2inch to 28inch. Hammers are a variable for down hole and blast hole applications and use in nearly all ground conditions.
Like all of other SHENDIKE DTH hammers, the 3.5inch DTH hammer maintains excellent operation pressure and extend service life and overall is the tool you require to get the maximum out off all your equipment.
Features
Patented features maximize energy output and reduce service requirements.
Fewer internal components minimize service requirements.
High frequency design ensures smooth operation.
All critical internal components are heat treated under strict control to maximize tool longevity.
High frequency design ensures smooth operation
| Technical Specification | |||||||||
| Hammer Model | Bit Shank | Foot Valve | Connection Thread | Hammer OD | Hammer length(without bit) | Bit range | Hammer Weight | Air consumption at 15Bar | Work pressure |
| JH3.5D | DHD3.5 | Yes | API 23/8"reg pin | 80mm | 863mm | 90-105mm | 24kg | 7m³/min | 10-20Bar |
| JS3.5D | DHD3.5 | No | API 23/8"reg pin | 80mm | 887mm | 90-105mm | 24kg | 7m³/min | 10-20Bar |
| JS3B | BR33 | No | API 23/8"reg pin | 80mm | 847mm | 90-105mm | 24kg | 7m³/min | 10-20Bar |
| TEAMWHOLE OTHER DTH HAMMER MODEL | ||
| DTH HAMMER(Inch) | Matched Bit Shank | Bit Range/mm |
| 3.5inch | COP32/COP34/MACH303/DHD3.5/BR33 | 90-110mm |
| 4inch | COP42/COP44/MACH44/DHD340/QLX40/MISSION40/SD4 | 105-130mm |
| 5inch | COP54/MACH54/DHD350/QL50/SD5/MISSION50 | 130-152mm |
| 6inch | COP64/DHD360/QL60/SD6/MISSION60 | 152-190mm |
| 8inch | COP84/DHD380/QL80/SD8/MISSION80 | 203-254mm |
| 10inch | SD10/NUMA100/TH10 | 254-305mm |
| 12inch | SD12/NUMA120/DHD112/NUMA125 | 305-350mm |
| 14inch | TK14/NUMA125 | 350-450mm |
| 18inch | TK18/NUMA180 | 450-600mm |
| 24inch | TK24/NUMA240 | 600-800mm |
| 28inch | TK19/NUMA280 | 800-1000mm |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
