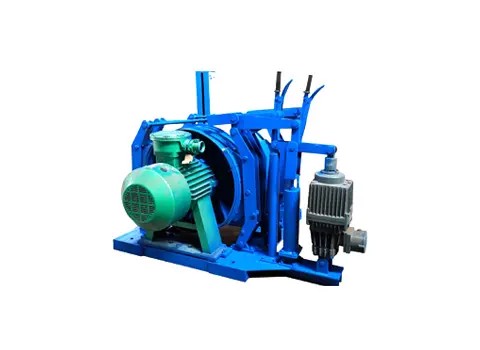

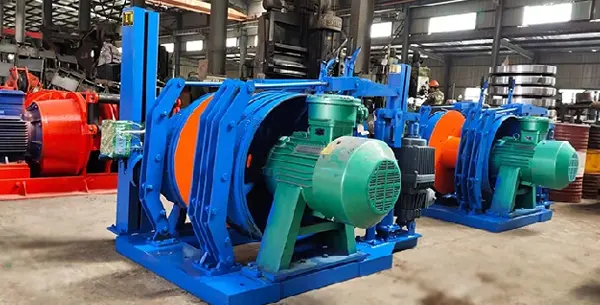

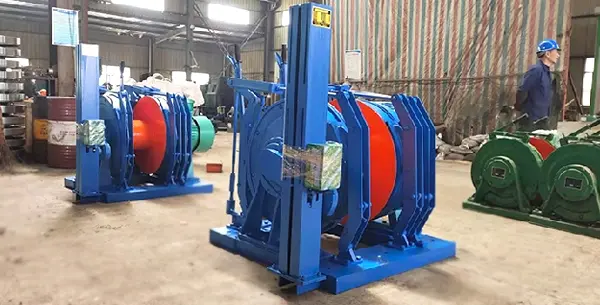

Product category: transport winch series
Maximum static tension of wire rope: 13KN
Wire rope speed: ≤1.6m/s
Wire rope diameter: 16mm
Drum size (diameter x width): 300x350mm
Rope capacity: 400m
Minimum wire rope breaking tension: 143KN
Motor model: YBJ25-4 25KW
1. Application:
JYB transport winch is mainly suitable for hauling mine cars in underground coal mines and other mines with an inclination angle of less than 30°.
2. Scope of use:
1) When the winch is working, the methane and coal dust in the surrounding air should not exceed the concentration specified in the “Coal Mine Safety Regulations”.
2). The winch should be installed in a machine room with an air temperature of 0℃～40℃, a relative humidity of no more than 85% (when the ambient temperature is 20℃±5℃), and an altitude of no more than 1000 meters. The winch should work in a dry and ventilated environment that can prevent liquid from entering the electrical appliance, without severe vibration, bumps, and corrosive gases.
3). When the altitude exceeds 1000 meters, it is necessary to consider the air cooling effect and the decrease in dielectric strength. The selected electrical equipment should be designed or used according to the agreement between the manufacturer and the user.
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
