Company: Luoyang Shandike
Connection Thread: API2 3/8”REG,API3 1/2”REG,API4 1/2”REG
Outer diameter: BH140:155mm/BH170:190mm/BH190:220mm/BH240:240mm

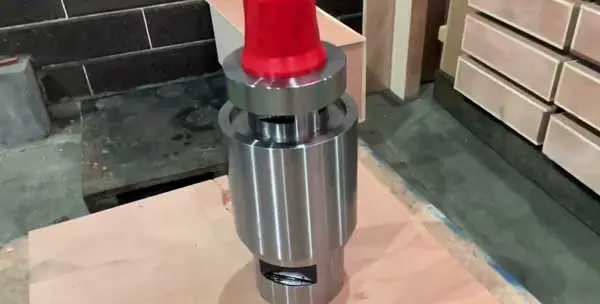

Back hammer is a tool that can save and recover a drill string stuck in a hole, it can be easily fitted in a suitable tube joint between the drill support and the rotation head to provide an effective combination of backward hammering and vibration to loosen stuck drill strings.
In case of jamming of any drilling tool in the boring process, the back hammer will assist you to solve the stuck problem by giving a backward impact power.
The back hammer may be mounted on the drill pipe joint between the borehole gripper and the swivel head, thus creating a combined effect of effective reverse impact and vibration.

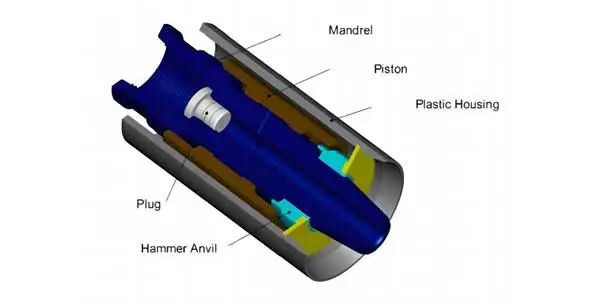

The back hammer is consisted of three components and a plastic housing.
The housing acts both as an exhaust emissions guider and a muffler. With regards to the maintenance, it’s only necessary to keep it clean and the linking section we protected when the back hammer is not in use.
| Produet | Pressure | Thread | Tolal Lngt(mm) | Diamote(mm) | KG |
| BH140 | 8 Bar | AP131/2" | 510 | 140 | 31.0 |
| BH160 | 8 Bar | AP131/2° | 540 | 160 | 44.0 |
| BH190 | 8 Bar | API41/2" | 580 | 190 | 63.0 |
| BH240 | 8 Bar | 600 | 240 | 85.0 |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
