Thread size: R22, R25, R28, SSR28, R32, SSR32, R35, SSR35, R38, T38, other.
Rod size: Hex.22, Hex.25, Hex.28, Hex.32, Hex.35.
Length: 2100mm to 6095mm.
Applications:Drilling duties in tunneling, construction, mining, quarrying, etc.

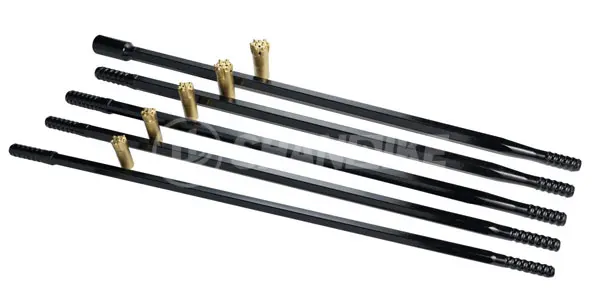

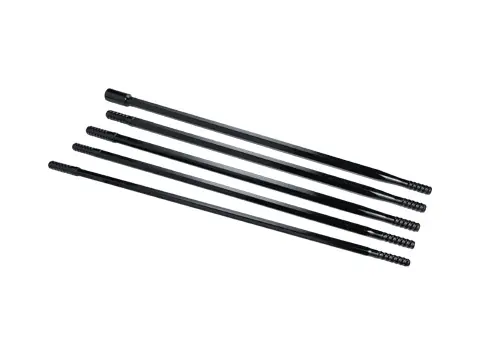

Hexagonal drill rods are produced by CNC machining and advanced heat treatment on the base of the same steels as Sandvik.
Parameters
• Thread size: R22, R25, R28, SSR28, R32, SSR32, R35, SSR35, R38, T38, other.
• Rod size: Hex.22, Hex.25, Hex.28, Hex.32, Hex.35.
• Length: 2100mm to 6095mm.
Features
• Carburizing process is applied to promote surface hardness, thus grant better wearing quality and lifespan for the drill rods;
• 23CrNi3Mo, which is in same league as Sandvik Sandbar 64, is applied as drill rod material.
• Cost-effective, good performance with reasonable price.
• Complete types of drill rod for various drilling scenarios.
Drilling duties in tunneling, construction, mining, quarrying, etc.
Drifting and Tunneling Rod / MF(Speed) Rod  |
| Description | Length | Diameter | Weight | ||
| mm | feet | mm | inch | kg | |
| Drifter RodR32 – Hex.25 – R25 | 2100 | 6′ 10 5/8” | 25 | 1” | 8.60 |
| 2200 | 7′ 2 5/8” | 25 | 1” | 9.00 | |
| 2400 | 7′ 10 1/2” | 25 | 1” | 9.30 | |
| 2600 | 8′ 6 3/8” | 25 | 1” | 10.0 | |
| 2800 | 9′ 2 1/4” | 25 | 1” | 10.8 | |
| 3090 | 10′ 1 5/8” | 25 | 1” | 12.0 | |
| Drifter RodR32 – Hex.28 – R28 | 2400 | 7′ 10 1/2” | 28 | 1 1/8” | 11.9 |
| 2600 | 8′ 6 3/8” | 28 | 1 1/8” | 13.6 | |
| 3050 | 10′ | 28 | 1 1/8” | 17.0 | |
| 3700 | 12′ | 28 | 1 1/8” | 18.5 | |
| 4000 | 13′ 1/2” | 28 | 1 1/8” | 21.0 | |
| 4305 | 14′ | 28 | 1 1/8” | 23.5 | |
| Drifter RodR38 – Hex.32 – R32 | 3050 | 10′ | 32 | 1 1/4” | 19.5 |
| 3700 | 12′ | 32 | 1 1/4” | 24.0 | |
| 4305 | 14′ | 32 | 1 1/4” | 27.9 | |
| 4915 | 16′ | 32 | 1 1/4” | 31.8 | |
| Drifter RodR38 – Hex.35 – R32 | 3050 | 10′ | 35 | 1 3/8” | 21.4 |
| 3700 | 12′ | 35 | 1 3/8” | 29.0 | |
| 4305 | 14′ | 35 | 1 3/8” | 33.8 | |
| 4915 | 16′ | 35 | 1 3/8” | 38.6 | |
| 5525 | 18′ | 35′ | 1 3/8′ | 43.4 | |
| Drifter RodT38 – Hex.35 – R32 | 3700 | 12′ | 35 | 1 3/8” | 29.0 |
| 4305 | 14′ | 35 | 1 3/8” | 33.8 | |
| 4915 | 16′ | 35 | 1 3/8” | 38.6 | |
| 5525 | 18′ | 35 | 1 3/8” | 43.4 | |
| MF(Speed) Drifter RodT38 – Hex.35 – R32 | 3700 | 12′ | 35 | 1 3/8” | 29.2 |
| 4305 | 14′ | 35 | 1 3/8” | 34.0 | |
| 4915 | 16′ | 35 | 1 3/8” | 38.8 | |
| 5525 | 18′ | 35 | 1 3/8” | 43.6 | |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
