Weight: 24
Size: 675mm
Working pressure: 0.4~0.63Mpa
Applications: Drilling duties in tunneling, construction, mining, quarrying, etc.

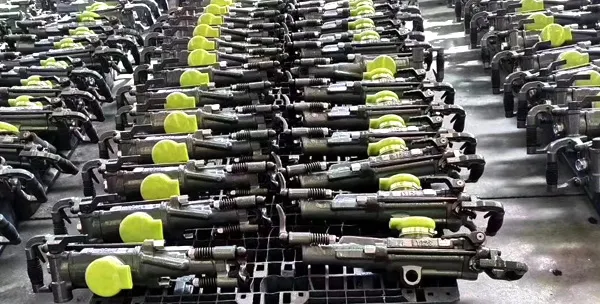

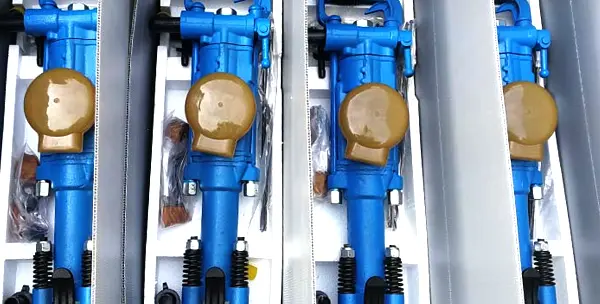

YT24 air leg rock drill is a high efficiency rock drilling machine. It widely used in rock drilling blasting holes, it’s very important to coal mine, railway traffic, water conservancy and so on.
1.YT24 is suitable for drilling horizontal or tiptilted blasthole in solid hard rocks as well as vertical bolt holes on the roof.

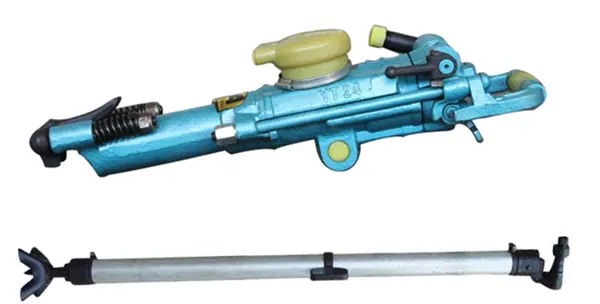

2.YT24 can be used with the air leg FT140B, FT140BD. It is also installed on drill rig or drill frame; meanwhile, we provide a transparent lubricator FY200B to observe the oil level and adjust the oil quantity in order to make sure a favorable lubrication.
3. It is the indispensable tool in mining, railway, transportation, water conservancy construction and earthwork projects.
| Weight | kg | 24 |
| Size | mm | 675 |
| Working pressure | Mpa | 0.4~0.63 |
| Piston diameter | mm | 70 |
| Piston stroke | mm | 70 |
| Air pipe inner diameter | mm | 19 |
| Water pipe inner diameter | mm | 13 |
| Drilling diameter | mm | 34~42 |
| Max drilling depth | m | 5 |
| Shank size | mm | H22×108 |
| Impact frequency | Hz | ≥31（0.5MPa) |
| Impact energy | J | ≥31（0.5MPa) |
| Air consumption | L/s | ≤52 |
| Rotation | r/min | 250 |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
