Shank size: 22*108
Weight(kg):18
Working pressure(mpa):0.4

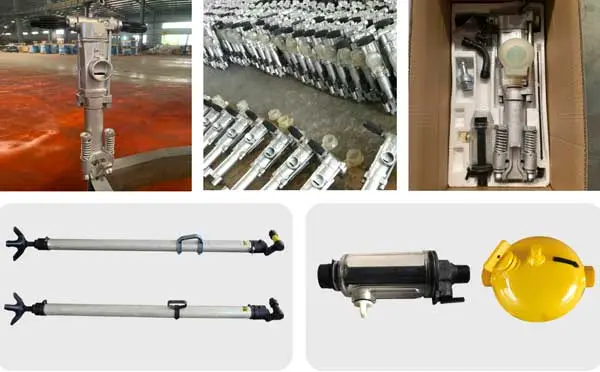

Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock. It is widely used in metallurgy, coal,railway, transportation, water conservancy construction and national defense stone works, etc. It is suitable for drilling andblasting under various of rocks at any direction angles.
Advantage
Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end.

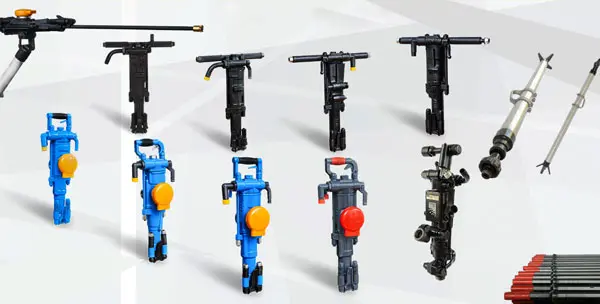

| Hand held rock drill specification | |||||
| Type | Y20LY | Y24 | Y26 | Y19A | TY24C |
| Weight(kg) | 18 | 23 | 26 | 19 | 23 |
| Shank size(mm) | 22*108 | 22*108 | 22*108 | 22*108 | 22*108 |
| Cylinder dia(mm) | 65 | 70 | 75 | 65 | 67 |
| Piston stroke(mm) | 60 | 70 | 70 | 54 | 70 |
| Working pressure(mpa) | 0.4 | 0.4-0.63 | 0.4-0.63 | 0.4-0.5 | 0.4-0.63 |
| Impact frequency(hz) | 28 | 28 | 28 | 28 | 28 |
| Air consumption | 25 | 55 | 47 | 37 | 55 |
| Air pipe inner dia(mm) | 19 | 19 | 19 | 19 | 19 |
| Rock drill hole dia(mm) | 30-45 | 30-45 | 30-45 | 30-45 | 30-45 |
| Rock drill hole depth(m) | 3 | 6 | 5 | 6 | 6 |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
