Versatile Applications: Suitable for vertical/inclined shafts, material/personnel transport, and metal/non-metal mines.
Enhanced Safety: Multi-level braking (disc brakes + hydraulic secondary braking + dynamic braking) + smart interlock devices.
Flexible Customization: Configurable drum type (single/double), adjustable speed, optional reducers (planetary/parallel-axis), and selectable control systems (PLC/frequency conversion).
Robust Structure: Flexible drum design ensures uniform force distribution; radial tooth clutch enables precise rope adjustment.

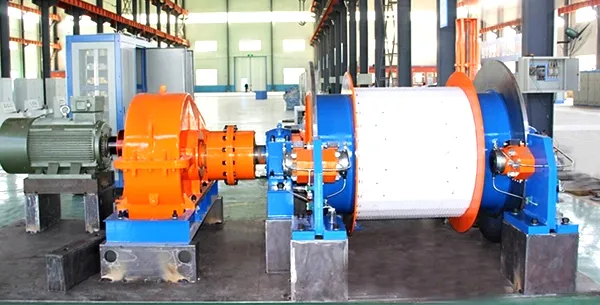

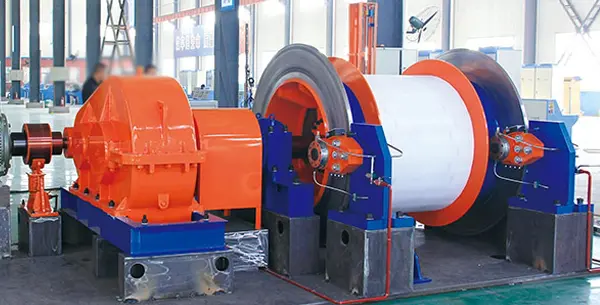

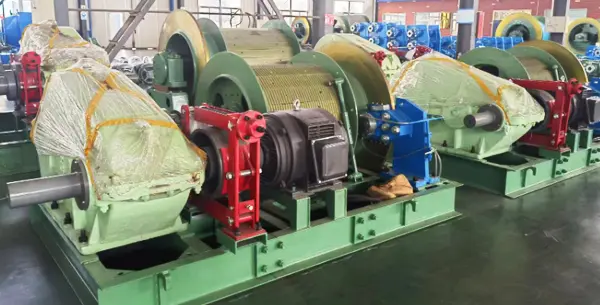

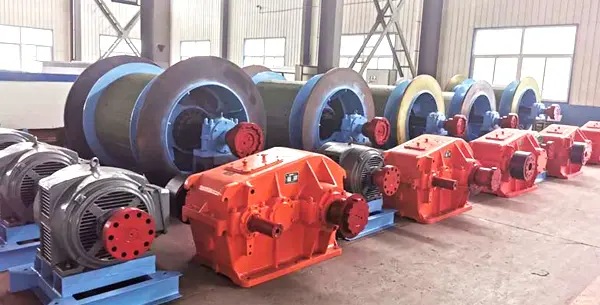

This series shaft sinking machine for mining are mainly used for mine shaft and inclined shaft to life coal, ore, waste rock as well as lifting personal, materials, tools and equipment. The principle axis unit used split or integral type flexible struction drum and the drum suffers force uniformly with big strength. Disc brakes of underground mining safety equipment are rear mounted fuel tank with flexible action. The hydraulic can delay secondary brake, and it can be automatically released in wellhead. Double-drum hoisting machine has rope-adjusting cluth with radial teeth. Transmission parts can be equipped with planetary reducer or parallel axis hardened reducer. Electrical parts of underground mining winch has necessary protection and interlock device, and user can choose PLC electrical controller and frequency speed-changing electrical controller. Dynamic braking of underground mining winch is also available on request.
JTP type underground mining winch features:
1.Loading weight from 3 tons to 4.5 tons.
2.Lifting height from 100 m to 600 m.
3.Can be produced with both single drum and double drums.
4.The speed can be adjusted according to customer demands.
5.Electric control system with PLC frequency inverter control. Keep safety of workers.
Range of Application:
JTP series underground mining equipment is mainly used in metal and non-metallic vertical shaft or inclined shaft for lifting coal, minerals and lifting or lowering people, materials equipment, etc., can be also used for other conveyance.
| Type | Drum | Max. static tension | Max. differential static tension | Lifting Height | Wire Rope | Speed Ratio | Motor | RPM | Spindle Dia. | Machine weight | Drum Weight | ||||||
| Quantity | Diameter | Width | Center Distance | One Layer | Two Layers | Three layers | Dia. | Speed | |||||||||
| pcs | mm | KN | m | mm | m/s | i | KW | r/min | mm | kg | |||||||
| JTP-1.2×1.0 JTP-1.2×1.0P JTPB-1.2×1.0 JTPB-1.2×1.0P | 1 | 1200 | 1000 | / | 30 | / | 134 | 297 | 472 | 20 | 1.91 | 24 | 75 | 730 | Φ1680×2400 | 8460 | 2800 |
| 2.53 | 90 | 970 | |||||||||||||||
| 1.45 | 31.5 | 55 | 730 | ||||||||||||||
| 1.93 | 75 | 970 | |||||||||||||||
| JTP-1.2×1.2 JTP-1.2×1.2P JTPB-1.2×1.2 JTPB-1.2×1.2P | 1200 | 168 | 371 | 582 | 1.91 | 24 | 75 | 730 | Φ1680×2600 | 8590 | 2930 | ||||||
| 2.53 | 90 | 970 | |||||||||||||||
| 1.45 | 31.5 | 55 | 730 | ||||||||||||||
| 1.93 | 75 | 970 | |||||||||||||||
| JTP-1.6×1.2 JTP-1.6×1.2P JTPB-1.6×1.2 JTPB-1.6×1.2P | 1 | 1600 | 1200 | / | 45 | / | 172 | 382 | 601 | 26 | 2.54 | 24 | 132 | 730 | Φ2080×2900 | 13100 | 5100 |
| 3.38 | 185 | 970 | |||||||||||||||
| 1.94 | 31.5 | 110 | 730 | ||||||||||||||
| 2.57 | 132 | 970 | |||||||||||||||
| JTP-1.6×1.5 JTP-1.6×1.5P JTPB-1.6×1.5 JTPB-1.6×1.5P | 1500 | 226 | 491 | 767 | 2.54 | 24 | 132 | 730 | Φ2080×3200 | 13470 | 5470 | ||||||
| 3.38 | 185 | 970 | |||||||||||||||
| 1.94 | 31.5 | 110 | 730 | ||||||||||||||
| 2.57 | 132 | 970 | |||||||||||||||
| 2JTP-1.2×0.8 2JTP-1.2×0.8P 2JTPB-1.2×0.8 2JTPB-1.2×0.8P | 2 | 1200 | 800 | 890 | 30 | 20 | 99 | 232 | 370 | 20 | 1.91 | 24 | 55 | 730 | Φ1680×3350 | 10480 | 4500 |
| 2.53 | 75 | 970 | |||||||||||||||
| 1.45 | 31.5 | 45 | 730 | ||||||||||||||
| 1.93 | 55 | 970 | |||||||||||||||
| 2JTP-1.2×1.0 2JTP-1.2×1.0P 2JTPB-1.2×1.0 2JTPB-1.2×1.0P | 1000 | 1090 | 134 | 297 | 472 | 1.91 | 24 | 55 | 730 | Φ2080×3750 | 10740 | 4760 | |||||
| 2.53 | 75 | 970 | |||||||||||||||
| 1.45 | 31.5 | 45 | 730 | ||||||||||||||
| 1.93 | 55 | 970 | |||||||||||||||
| 2JTP-1.6×0.9 2JTP-1.6×0.9P 2JTPB-1.6×0.9 2JTPB-1.6×0.9P | 2 | 1600 | 900 | 990 | 45 | 30 | 118 | 272 | 434 | 26 | 2.54 | 24 | 110 | 730 | Φ2080×3750 | 14300 | 7800 |
| 3.38 | 155 | 970 | |||||||||||||||
| 1.94 | 31.5 | 90 | 730 | ||||||||||||||
| 2.57 | 110 | 970 | |||||||||||||||
| 2JTP-1.6×1.2 2JTP-1.6×1.2P 2JTPB-1.6×1.2 2JTPB-1.6×1.2P | 1200 | 1290 | 172 | 382 | 601 | 2.54 | 24 | 110 | 730 | Φ2080×4350 | 15100 | 8600 | |||||
| 3.38 | 155 | 970 | |||||||||||||||
| 1.94 | 31.5 | 90 | 730 | ||||||||||||||
| 2.57 | 110 | 970 |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
