Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm
Thread: 2 3/8’’ API REG, 2 7/8’’ API REG, 3 1/2’’ API REG, 4 1/2’’ API REG，2 3/8″ API IF, 3 1/2″ API IF; BECO 6”, BECO 8”

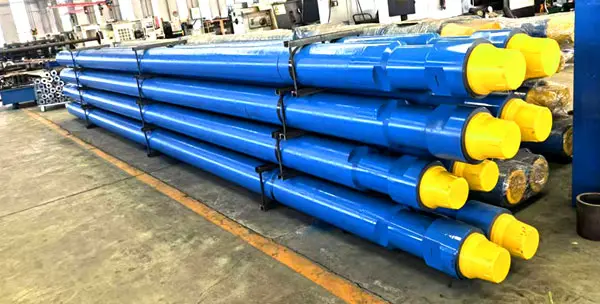

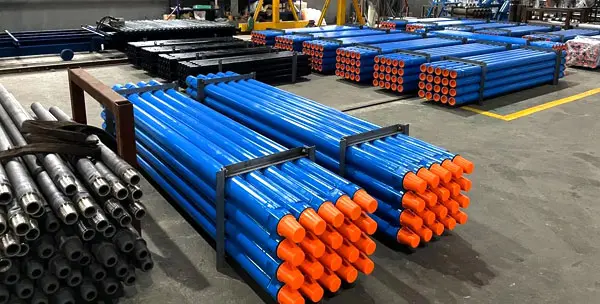

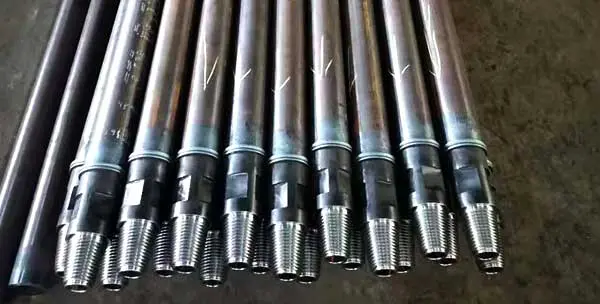

The DTH drill pipe consist of pipe and two adapters, box and pin. We use high strength and well-resistance alloy steel, inserting of high tensile seamless pipe, and according to different drilling depth, we can offer various thickness of pipe and material for customers’requirements.
DTH drill pipe Feature
• Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm
• Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm
• Thread: 2 3/8’’ API REG, 2 7/8’’ API REG, 3 1/2’’ API REG, 4 1/2’’ API REG，2 3/8″ API IF, 3 1/2″ API IF; BECO 6”, BECO 8”
• Wall thickness: 5.5mm/6.5mm/7.5mm/8.5mm/10mm
• Other spaecial size can be customized by customer’s drawing.
• Advanced heat treatment technology and friction welding mahcine.
| Rod dia | Rod length | Thickness | Connect thread | Wrench flats | |
| (inch) | (mm) | (mm) | (mm) | (mm) | |
| 3 | 76 | 1000-6000 | 5 | API2 3/8”REG | 57/64.5 |
| 3 | 76 | 1000-9000 | 8 | API2 3/8”REG | 57/64.5 |
| 3 1/2 | 89 | 1000-6000 | 6 | API2 3/8”REG | 70/64 |
| 3 1/2 | 89 | 1000-9600 | 8 | API2 3/8”REG | 70/64 |
| 4 | 102 | 1000-9000 | 10 | API2 3/7”REG | 76/89 |
| 4 1/2 | 114 | 1500-7620 | 6 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 8 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 10 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 18 | API3 1/2”REG | 89/95 |
| 5 | 127 | 1500-9500 | 12 | API3 1/2”REG | 89 |
| 5 | 127 | 1500-9500 | 14 | API3 1/2”REG | 89 |
| 5 | 127 | 1500-9500 | 18 | API3 1/2”REG | 89 |
| 5 1/2 | 140 | 1500-9500 | 9 | API4 1/2”REG or 4’FH | 114 |
| 5 1/2 | 140 | 1500-9500 | 10 | API4 1/2”REG or 4’FH | 114 |
| 5 1/2 | 140 | 1500-9500 | 12 | API4 1/2”REG or 4’FH | 114 |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
