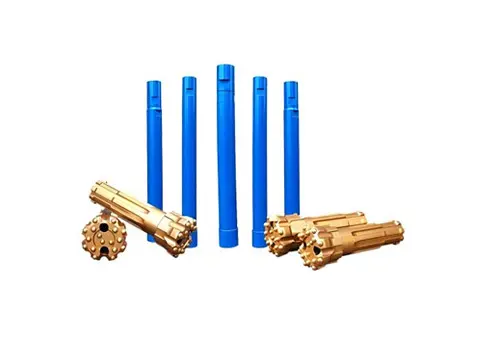

1.Enhanced fatigue strength through advanced forging technology.

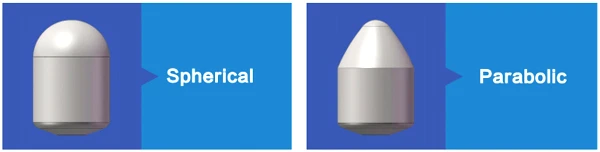

2.High quality carbide in optimal sizes for stable longevity.
3.Precision inlaying technology prevents carbide detachment.
4.State of the art heat treatment ensures superior hardness and wear resistance.
5.Tailored design and specialized processing for extended service life across various rock formations.

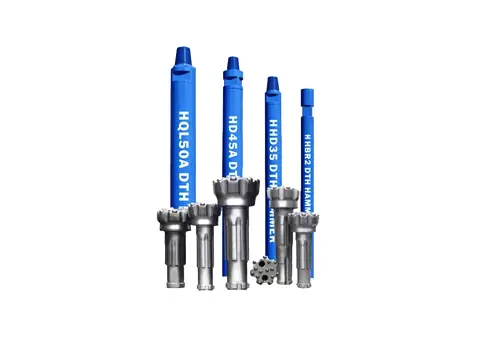

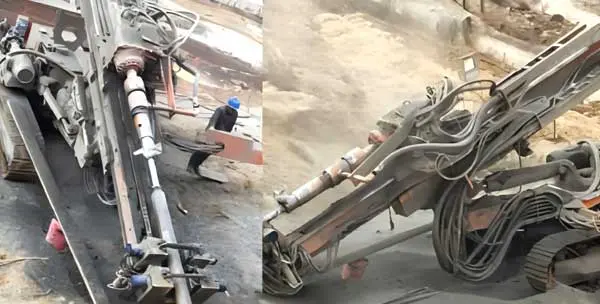

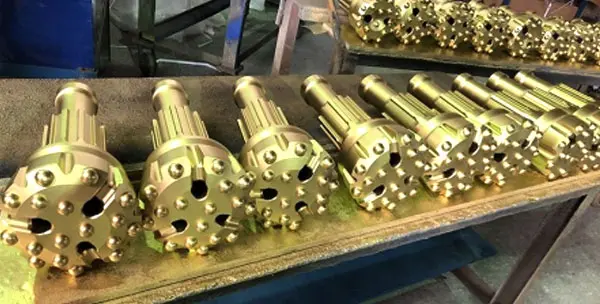

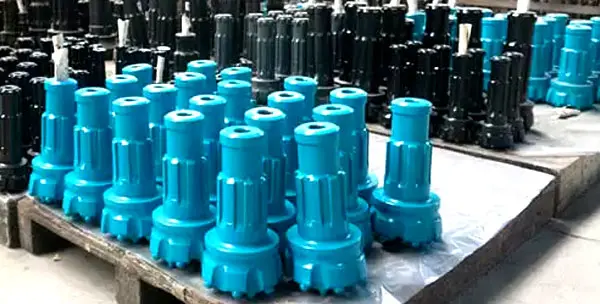

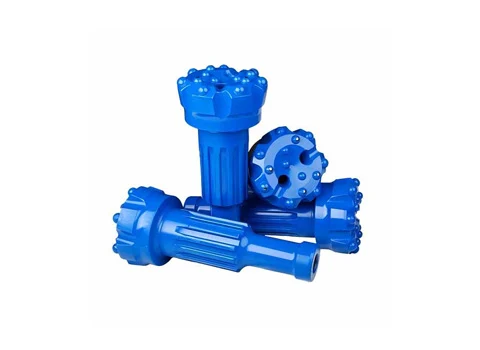

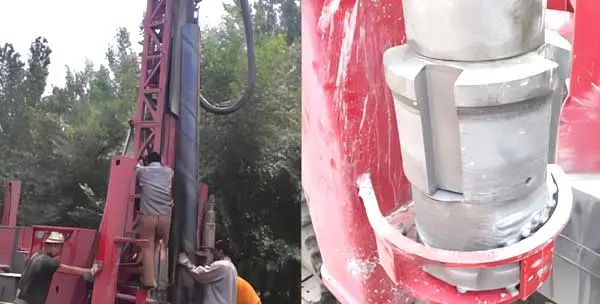

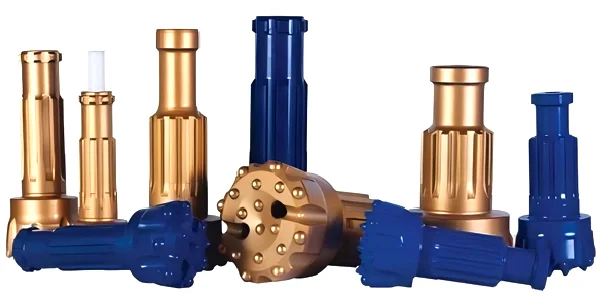

SHANDIKE has a comprehensive range of DTH drill bits to match all conceivable applications. Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house. These are deigned for specific applications for all rock types, hardness’s and condition. Bit life and rate of penetration are the most important criteria in selecting the right bit for a particular application.
Features
1.Enhanced fatigue strength through advanced forging technology.
2.High quality carbide in optimal sizes for stable longevity.
3.Precision inlaying technology prevents carbide detachment.
4.State of the art heat treatment ensures superior hardness and wear resistance.
5.Tailored design and specialized processing for extended service life across various rock formations.

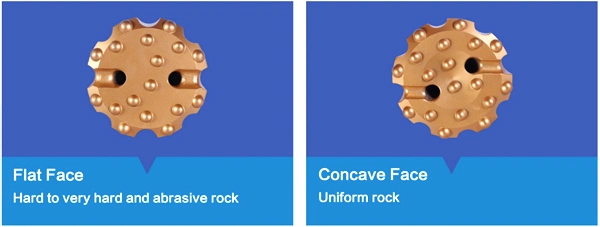

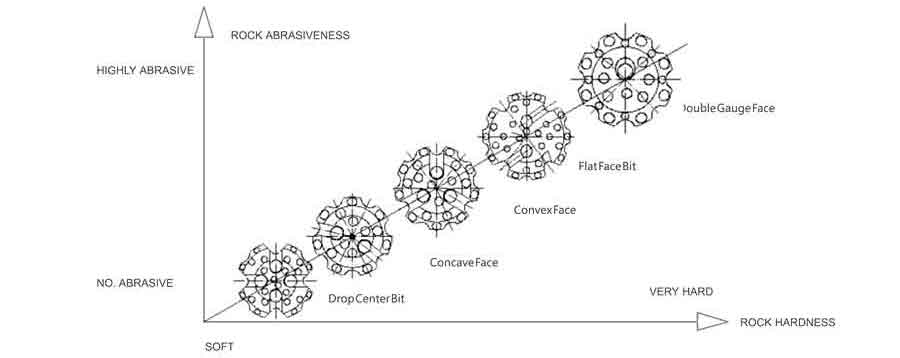

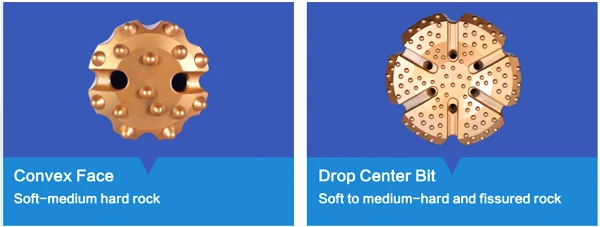

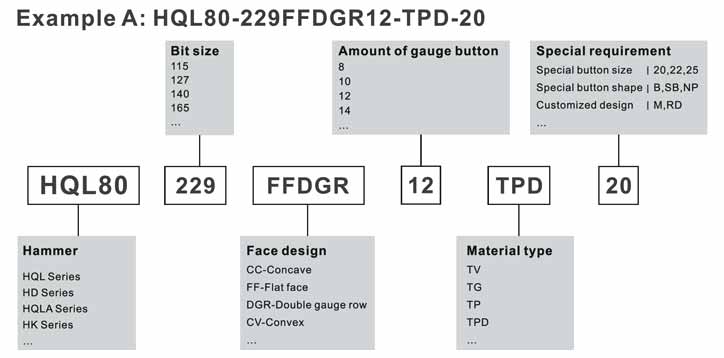

Bit Face Shape Selection

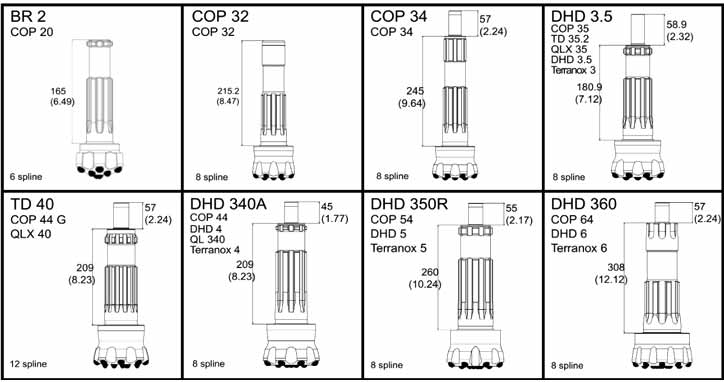

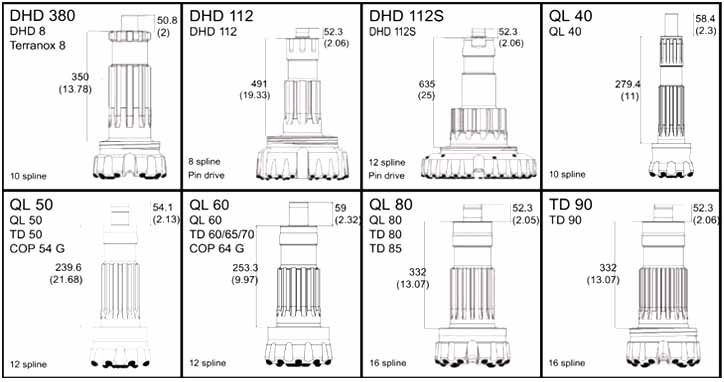

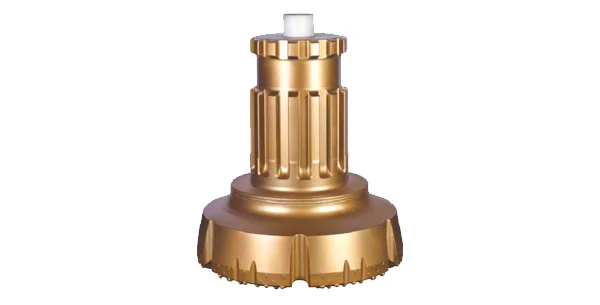

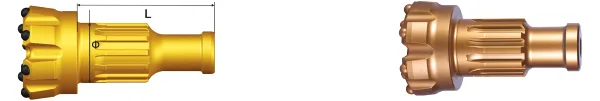

DTH BIT WITHOUT FOOTVALVEDHD Shank
| Model | Bit shank | L | φ | Spline | Air hole | Rec.hole size(mm) |
| JS3.5B | BR33 | 165 | 54 | 7 | 2 | 90-105 |
| JS3.5D | DHD3.5 | 181 | 54.6 |
8 |
2 |
90-105 |
| JS4H | DHD340 | 209 | 65 | 8 | 2 | 105-130 |
| JS5H | DHD350 | 260 | 84 | 8 | 2 | 140-152 |
| JS6H | DHD360 | 308 | 101.5 | 8 | 2 | 152-190 |
| JS8H | DHD380 | 350 | 128.5 | 10 |
2 |
203-245 |
| TSK12H | DHD112 | 490 | 183 | 8 | 3 | 305-380 |

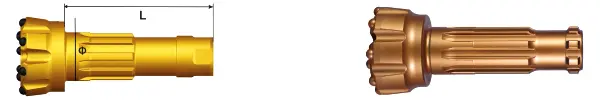

SD Shank

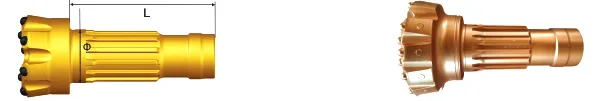

| Model | Bit shank | L | φ | Spline | Air hole | Rec.hole size(mm) |
| JS4S | SD4 | 260 | 67 | 8 | 2 | 105-130 |
| JS5S | SD5 | 258 | 82.5 |
8 |
2 | 140-152 |
| JS6S | SD6 | 324 | 102 | 8 | 2 | 152-190 |
| JS8S | SD8 | 321 | 118 | 8 | 2 | 203-245 |
| JS10S | SD10 | 355.8 | 164.5 | 8 | 2 | 245-305 |
| JSK12S | SD12 | 470 | 185.5 | 8 | 3 | 305-380 |
MISSION Shank
| Model | Bit shank | L | φ | Spline | Air hole | Rec.hole size(mm) |
| JS3.5M | MISSION35 | 225 | 55 | 8 | 2 | 90-105 |
| JS4M | MISSION40 | 228 | 68 | 12 | 2 | 105-130 |
| JS5M | MISSION50 | 260 | 82.5 | 12 | 2 | 140-152 |
| JS6M | MISSION60 | 231 | 106.5 | 12 | 2 | 152-190 |
| JS8M | MISSION80 | 329 | 128.5 | 12 | 2 | 203-245 |
QL Shank
| Model | Bit shank | L | φ | Spline | Air hole | Rec.hole size(mm) |
| JS4X | QLX40 | 209.5 | 69 | 12 | 2 | 105-130 |
| JS5L | QL50 | 240 | 88.5 | 12 | 2 | 140-152 |
| JS6L | QL60 | 253 | 106 | 12 | 2 | 152-190 |
| JS8L | QL80 | 331 | 136 | 16 | 2 | 203-245 |
| TK12L | QL120 | 492 | 208.5 | 12 | 3 | 305-380 |

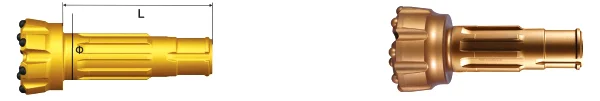

DHD Shank

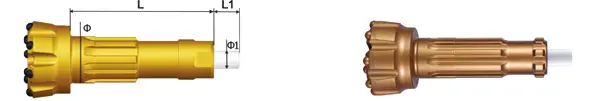

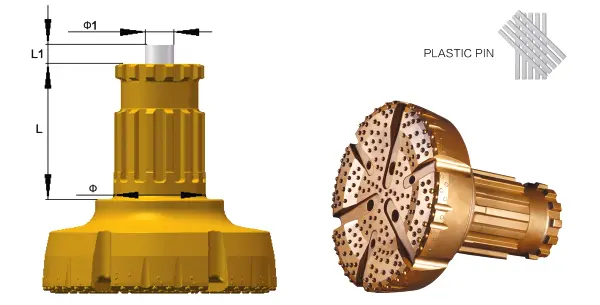

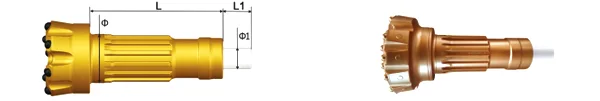

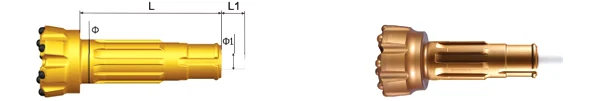

| Model | Bit shank | L | 中 | L1 | φ1 | Spline | Air hole | Rec.hole size(mm) |
| JH3.5D | DHD3.5 | 181 | 54.6 | 54.6 | 24.5 | 8 | 2 | 90-105 |
| JH4H | DHD340 | 209 | 65 | 59 | 27 | 8 | 2 | 105-130 |
| JH5H | DHD350 | 260 | 84 | 56 | 35 |
8 |
2 | 140-152 |
| JH6H | DHD360 | 308 | 101.5 | 55 | 38 | 8 | 2 | 152-190 |
| JH8H | DHD380 | 350 | 128.5 | 51 | 50.6 | 10 | 2 | 203-245 |
| JK12H | DHD112 | 490 | 183 | 52.2 | 63.2 | 8 | 3 | 305-380 |
SD Shank
| Model | Bit shank | L | 中 | L1 | φ1 | Spline | Air hole | Rec.hole size(mm) |
| JH4S | SD4 | 260 | 67 | 54 | 26 | 8 | 2 | 105-130 |
| JH5S | SD5 | 258 | 82.5 | 54.5 | 32 | 8 | 2 | 140-152 |
| JH6S | SD6 | 324 | 102 | 53 | 36.4 | 8 | 2 | 152-190 |
| JH8S | SD8 | 321 | 118 | 57 | 41 | 8 | 2 | 203-245 |
| JH10S | SD10 | 355.8 | 164.5 | 60.3 | 56 | 8 | 3 | 245-305 |
| JK12S | SD12 | 470 | 185.5 | 48 | 63.2 | 8 | 3 | 305-380 |

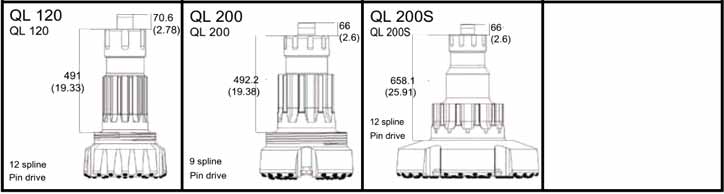

QL Shank
| Model | Bit shank | L | φ | L1 | φ1 | Spline | Air hole | Rec.hole size(mm) |
| JH4X | QLX40 | 209.5 | 69 | 58 | 32.2 | 12 | 2 | 105-130 |
| JH5L | QL50 | 240 | 88.5 | 52 | 38.5 | 12 | 2 | 140-152 |
| JH6L | QL60 | 253 | 106 | 59 | 46 | 12 | 2 | 152-190 |
| JH8L | QL80 | 331 | 136 | 54 | 54.6 | 16 | 2 | 203-245 |
| TK12L | QL120 | 492 | 208.5 | 52.2 | 71.5 | 12 | 3 | 305-380 |
Features
◆Military grade special steel minimizes breakage and cracking failures.
◆Advanced forging process enhances the fatigue strength of the drill bit steel body.
◆Ultrasonic and magnetic particle flaw detection identify and eliminate material and forging defects, reducing potential quality issues during drilling.
◆Larger carbides extend the service life of the drill bit
◆CNC machining ensures precise dimensions of the drill bit.
◆Specially designed foot valve provides high strength and toughness, ensuring reliable performance.
◆Shock absorbing plastic pin enhances the service life of the shank spline.
Numa Shank
| Model | Bit shank | L | φ | L1 | φ1 | Spline | Air hole | Rec.hole size(mm) |
| JH10N | NUMA100 | 375 | 165 | 53 | 54 | 10 | 3 | 245-305 |
| TK12N | Numa120 | 490.5 | 191 | 56.5 | 75.6 | 12 | 3 | 305-380 |
| TK12HN | Numa125 | 491 | 209 | 54 | 74.5 | 10 | 3 | 305-380 |
| TK14 | TK14 | 520 | 235 | / | / | 10 | 3 | 400-500 |
| TK18 | NUMA180 | 527.5 | 297 | 80.7 | 93.2 | 12 | 6 | 500-600 |
| TK24 | TK24 | 560 | 380 | 80 | 118.2 | 14 | 6 | 600-800 |
| TK28 | TK28 | 560 | 430 | 80 | 118.2 | 16 | 6 | 800-1150 |
Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
