Why the T45 Extension Rod 3660mm is the Industry Standard for Top Hammer Drilling
In top hammer rock drilling, maximizing depth while maintaining hole straightness is a continuous engineering challenge. Among various drill string configurations, the T45 extension rod 3660mm (commonly referred to as the 12-foot T45 drifter rod) has established itself as the global industry benchmark for medium-to-deep hole drilling.
For mining operators and drilling contractors looking to optimize their cost-per-meter, Luoyang Shandike Mechanical Equipment Co., Ltd manufactures precision-engineered 3660mm T45 rods designed to maximize energy transmission and withstand high-frequency percussive fatigue.
The Mechanical Logic Behind the 3660mm (12ft) Specification
Choosing a drill rod length is not arbitrary; it requires balancing rig ergonomics with stress physics. The 3660mm length persists as the primary choice for several reasons:
- Rig Compatibility: Global top hammer drill rigs—such as the Epiroc PowerROC/FlexiROC series and Sandvik jumbos—are engineered around a standard feed beam container that natively accepts 12-foot (3660mm) rod changes.
- Deflection Control: At a 45mm thread diameter, a 3660mm round rod offers optimal structural rigidity. Extending past 4270mm increases the risk of the steel flexing under heavy feed pressure, resulting in borehole deviation.
- Energy Efficiency: Shorter rods require more joints to reach target depths. Because each coupling interface absorbs 8% to 15% of the percussive shockwave, utilizing a standard 3660mm rod minimizes energy attenuation compared to using multiple shorter segments.
Technical Specifications: T45 3660mm Precision Matrix
To ensure seamless integration with automatic rod handling systems (RHS) and standard coupling sleeves, Luoyang Shandike Mechanical Equipment Co., Ltd maintains strict dimensional tolerances:At
| Engineering Parameter |
Metric Specifications |
Imperial Equivalent |
| Total Nominal Length |
3660 mm |
12 feet |
| Thread Connection Type |
T45 Trapezoidal |
45 mm (1.75 inch) |
| Rod Body Section |
Round 46 (Standard) |
46 mm Outside Diameter |
| Flushing Hole Diameter |
17 mm / 21.5 mm |
Internal Center Hole |
| Recommended Hole Range |
76 mm – 127 mm |
3.0 inch – 5.0 inch |
| Compatible Bit Diameters |
89 mm & 102 mm |
Highly Optimized Configuration |
System Configurations: MM vs. MF 3660mm Drill Steel
Depending on the flushing setup and rig configuration, the 3660mm T45 drifter rod is deployed in two structural designs:

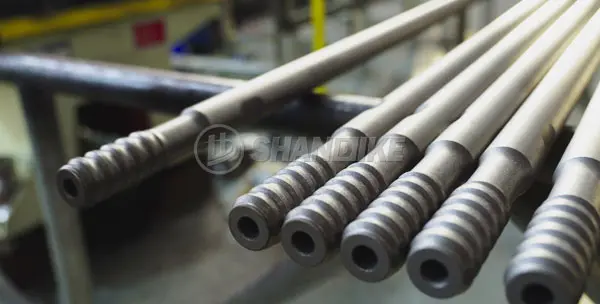

- T45 Extension Rods (Male/Male): Features identical T45 male threads on both ends. This setup utilizes a separate T45 coupling sleeveto connect components. It allows for modular replacements if one end suffers thread wear, making it a cost-effective choice for manual or semi-automated rigs.
- T45 MF Rods (Male/Female Speed Rods): Integrates the female coupling sleeve directly onto one end of the 3660mm rod via precision friction welding. It reduces thread play, improves energy transfer, and is highly favored by fully automated rod handling systems.
Advanced Carburization: Extending Service Life Under High Fatigue
The operational environment of a T45 drifter rod involves millions of percussive blows per hour alongside corrosive flushing water. Luoyang Shandike Mechanical Equipment Co., Ltd counters these failure vectors through advanced metallurgical processing:
- Premium Hollow Steel Base: We utilize high-tensile alloy structural steel that maintains core elasticity while absorbing extreme peak amplitudes.
- Full-Body Gas Carburization: Rather than only treating the thread profiles, the entire 3660mm rod undergoes uniform deep-surface carburization. This creates an ultra-hard exterior layer that resists abrasive rock powder wear and micro-fissures, drastically delaying fatigue-induced snapping.
- Anti-Corrosive Flushing Bore: The inner 17mm/21.5mm flushing hole is chemically treated to prevent rust pitting, ensuring smooth water or air delivery to cool the button bit.
Tailored Drilling Solutions by Luoyang Shandike
Luoyang Shandike Mechanical Equipment Co., Ltd, we understand that predictable tool life translates directly to project profitability. Our T45 extension rod 3660mm is designed to drop seamlessly into your existing drill strings, offering exact thread interchangeability with major international brands.
