SHANDIKE drill pipes are manufactured from high-strength premium alloy steel, designed for superior performance in drilling operations. They are offered in both hexagonal and round profiles to suit various applications. Engineered for precision, SHANDIKE rods help achieve straighter holes with minimal deviation and deliver extended service life.
SHANDIKE Extension Rods (MM Rod)
– Thread Sizes: R22, R25, R28, R32, R35, R38, T38, T45, T51
– Rod Diameters:
– Round: 32mm, 39mm, 46mm, 52mm
– Hex: 22mm, 25mm, 28mm, 32mm, 35mm
– Effective Lengths: 600mm – 6,400mm
SHANDIKE Male/Female Thread Rods (Speed Rods)
– Thread Sizes: R32, T38, T45, T51
– Rod Diameters: Round 32mm, 39mm, 46mm, 52mm
– Effective Lengths: 915mm – 6,100mm
SHANDIKE Drifting & Tunneling Rods
– Thread Sizes: R22, R25, R28, R32, R38, T38
– Rod Diameters:
– Round: 32mm, 39mm
– Hex: 25mm, 28mm, 32mm, 35mm
– Effective Lengths: 2,100mm – 6,400mm
| Technical Parameters | |||||
| Product Name | Rod size | Specification | Length | Rod type | |
| R25 Rod | Round25 | R25-R25-R25 | 2430 | M/M | Extension rod |
| Round28 | R25-R28-R25 | 1350 | M/M | Extension rod | |
| R32 Rod | Hex25 | R32-H25-R25 | 2900 | M/M | Extension rod |
| Hex28 | R32-H28-R28 | 2435 | M/M | Extension rod | |
| R32-H28-R28 | 2435 | M/F | Speed rod | ||
| Hex32 | R32-H32-R25 | 2742 | M/M | Extension rod | |
| R32-H32-R25 | 2742 | M/F | Speed rod | ||
| R32 | R32-R32-R32 | 1525 | M/M | Extension rod | |
| R38 Rod | Hex32 | R38-H32-R32 | 3100 | M/M | Extension rod |
| Hex35 | R38-H35-R32 | 1350 | F/F | Extension rod | |
| R38-H35-R32 | 2435 | M/M | Extension rod | ||
| R38-H35-R32 | 2435 | M/F | Speed rod | ||
| R38-H35-R32 | 4270 | M/M | Extension rod | ||
| R38-H35-R32 | 4270 | M/F | Speed rod | ||
| R38-H35-R32 | 4880 | M/M | Extension rod | ||
| R38-H35-R32 | 4880 | M/F | Speed rod | ||
| T38 Rod | Hex32 | T38-H32-R32 | 4305 | M/M | Extension rod |
| T38-H32-R32 | 4305 | F/M | Speed rod | ||
| R39 | T38-R39-T38 | 1220 | M/F | Speed rod | |
| T38-R39-T38 | 1525 | M/F | Speed rod | ||
| T38-R39-T38 | 3050 | M/M | Extension rod | ||
| T38-R39-T38 | 3050 | M/F | Speed rod | ||
| T38-R39-T38 | 3660 | M/F | Speed rod | ||
| T38-R39-T38 | 4260 | M/F | Speed rod | ||
| Hex35 | T38-H35-R32 | 4260 | M/F | Speed rod | |
| T38-H35-R32 | 4260 | M/M | Extension rod | ||
| T38-H35-R32 | 3700 | M/M | Extension rod | ||
| T38-H35-R32 | 3700 | M/F | Speed rod | ||
| T38-H35-R32 | 4305 | M/M | Extension rod | ||
| T38-H35-R32 | 4305 | M/F | Speed rod | ||
| T45 Rod | Round46 | T45-R46-T45 | 1525 | M/F | Speed rod |
| T45-R46-T45 | 3050 | M/M | Extension rod | ||
| T45-R46-T45 | 3660 | M/F | Speed rod | ||
| T45-R46-T45 | 4270 | F/M | Speed rod | ||

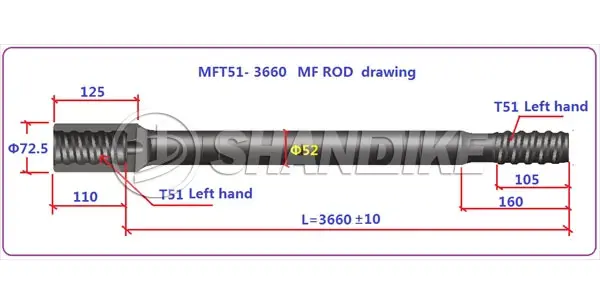

| T51 Rod | Round52 | T51-R52-T51 | 3660 | M/M | Extension rod |
| T51-R52-T51 | 3660 | M/F | Speed rod | ||
| T51-R52-T51 | 4270 | M/F | Speed rod | ||
