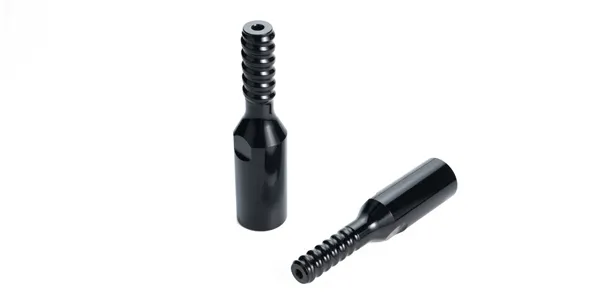

1. Overview of R32 Coupling Adaptors
The R32 Coupling Adaptor is a critical component in rock drill systems, designed to ensure efficient power transmission between the drill’s impactor and the drill rod. The designation “R32” refers to its compliance with the ISO 10208 standard for threaded connections (R32-type threads). These adaptors are widely used in hydraulic and pneumatic rock drills for applications such as mining, tunneling, and geological exploration.
2. Structural and Design Features
1. Standardized Thread Interface
R32 adaptors utilize standardized right-hand threads (R-threads), with precisely matched internal and external threading to minimize energy loss during power transfer.
2. High-Strength Materials
Manufactured from high-strength alloy steels (e.g., 55SiMnMo 42CrMo, 35CrMo), these adaptors undergo heat treatment (quenching and tempering) to enhance surface hardness and fatigue resistance, ensuring durability under high-impact conditions.
3. Sealing and Dust Protection
Select models incorporate O-rings or rubber bushings to prevent ingress of debris and moisture, prolonging service life.
4. Cross-Brand Compatibility
R32 adaptors are compatible with major rock drill brands (e.g., Atlas Copco, Sandvik, Furukawa) and support various drill rod lengths for operational flexibility.
3. Core Functions
1. Power Transmission
Efficiently transfers impact energy and rotational torque from the drill to the drill rod, maximizing drilling efficiency.
2. Vibration Damping
Structural design absorbs operational vibrations, protecting the drill’s internal components.
3. Quick Tool Changes
Standardized threads enable rapid replacement of drill rods or bits, reducing downtime.
4. Key Applications
– Mining: Deep-hole blasting in hard rock formations.
– Tunneling: Compatible with Tunnel Boring Machines (TBMs) for precision drilling.
– Construction: Foundation piling and rock anchoring in civil engineering projects.
5. Maintenance and Common Issues
1. Maintenance Guidelines
– Clean threads regularly and apply specialized thread grease (e.g., Copton series).
– Inspect seals for wear and replace them promptly.
– Avoid overloading to prevent thread deformation or fractures.
2. Common Failures
– Thread Wear: Caused by inadequate lubrication or debris accumulation.
– Adaptor Fracture: Resulting from material fatigue or excessive impact forces.
– Seal Failure: Leads to internal corrosion and reduced lifespan.
6. Selection Criteria
– Choose materials based on operating conditions (e.g., zinc-plated or nitrided adaptors for corrosive environments).
– Verify thread specifications (R32×3.5mm) to ensure compatibility with drill rods.
– Prioritize ISO 9001-certified products for guaranteed quality and reliability.
7. Future Trends
R32 adaptors are evolving toward lightweighting, enhanced fatigue resistance, and smart monitoring (e.g., embedded sensors for stress monitoring) to improve safety and efficiency in extreme drilling conditions.
Conclusion
As the “hub” of rock drill systems, R32 coupling adaptors directly influence drilling performance and equipment longevity. Proper selection, operation, and maintenance are essential for optimal performance. Advances in materials and smart technologies will further enhance their adaptability in demanding applications.
